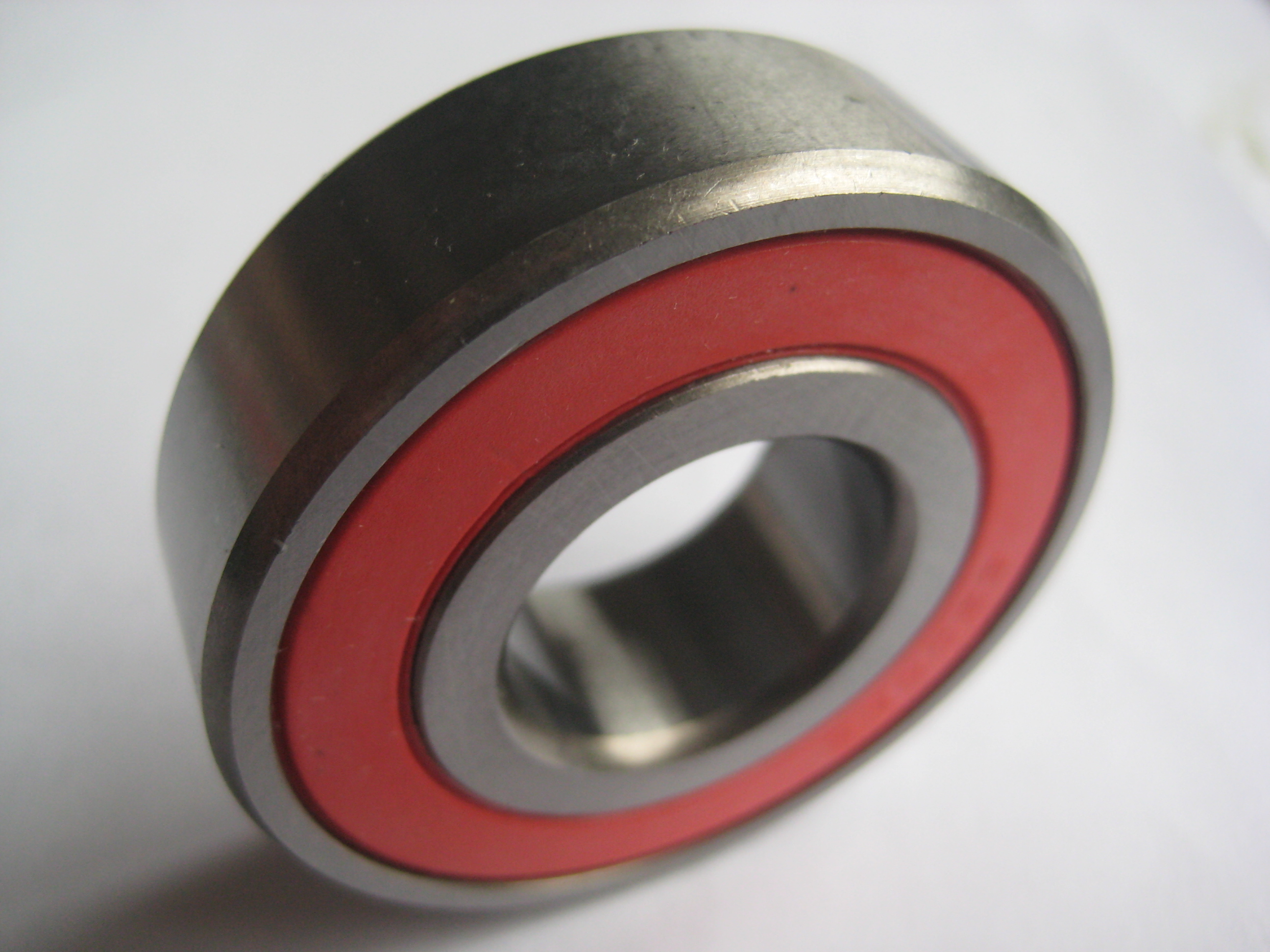

6204-7/8軸承

軸承型號Bearing Numbers		外型尺寸Boundary dimensions								額定負(fù)荷Load rating   N		參考重量（閉式）Weight kg
		內(nèi)徑		外徑		寬度		倒角		動負(fù)荷Cr	靜負(fù)荷Cor
ZPL Bearing	Bearing	d		D		B		rsmin
		mm	inch	mm	inch	mm	inch	mm	inch
608-5/16"	608-5/16"	7.938	0.3150	22	0.8861	7	0.2756	0.3	0.012	3290	1360	0.0129
6001-1/2“	6001-8	12.7	0.5000	28	1.1024	8	0.3150	0.3	0.0118	5110	2380	0.021
163110	163110	16	0.6299	31	1.2205	10	0.3937	0.3	0.0118	5600	2840	0.035
173110	173110	17	0.6693	31	1.2205	10	0.3937	0.3	0.0118	5600	2840	0.035
6004-21.4mm	6004-21.4	21.4	0.8425	42	1.6535	12	0.4724	0.6	0.0236	9390	5020	0.067
6005-1"	6005-1R	25.4	0.9843	47	1.8504	12	0.4724	0.6	0.0236	10060	5860	0.0800
6005-26mm	6005-26	26	0.9843	47	1.8504	12	0.4724	0.6	0.0236	10060	5860	0.0800
6201-1/2"	6201-8	12.7	0.5000	32	1.2598	10	0.3937	0.6	0.0236	6180	3060	0.0333
6201-13mm"	6201-13	13	0.5118	32	1.2598	10	0.3937	0.6	0.0236	6180	3060	0.033
6202-1/2”	6202-8	12.7	0.5000	35	1.3780	11	0.4331	0.6	0.0236	7450	3700	0.0475
6202-13mm	6202-13	13	0.5118	35	1.3780	11	0.4331	0.6	0.0236	7450	3700	0.0472
6202-5/8”	6202-10	15.875	0.6250	35	1.3780	11	0.4331	0.6	0.0236	7450	3700	0.042
6202-16mm	6202-16	16	0.6299	35	1.3780	11	0.4331	0.6	0.0236	7450	3700	0.042
99502HNR	99502H	15.875	0.6250	34.925	1.3750	11	0.4331	0.6	0.0236	7450	3700	0.042
6203-12mm	6203-12mm	12	0.4724	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.075
6203-1/2“	6203-8	12.7	0.5000	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.073
6203-13mm	6203-13	13	0.5118	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.0727
6203-15mm	6203-15	15	0.5906	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.0665
6203-5/8”	6203-10	15.875	0.6250	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.066
6203-16mm	6203-16	16	0.6299	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.066
6203-3/4”	6203-12	19.05	0.7500	40	1.5748	12	0.4724	0.6	0.0236	9560	4780	0.058
6204-3/4"	6204-12	19.05	0.7500	47	1.8504	14	0.5512	1	0.0394	12840	6650	0.11
6204-22mm	6204-22	22	0.8661	47	1.8504	14	0.5512	1	0.0394	12840	6650	0.098
6204-7/8"	6204-22.225	22.225	0.8750	47	1.8504	14	0.5512	1	0.0394	12840	6650	0.098
6205-1"	6205-1R	25.4	1.0000	52	2.0472	15	0.5906	1	0.0394	14020	7930	0.128
6302-16mm	440146C	16	0.6299	42	1.6535	13	0.5118	1	0.0394	11400	5430	0.08
6302-17mm	6302-17	17	0.6693	42	1.6535	13	0.5118	1	0.0394	11400	5430	0.078
6303-15mm	6303-15	15	0.5906	47	1.8504	14	0.5512	1	0.0394	13580	6580	0.135
6304-17mm	6304-17	17	0.6693	52	2.0472	15	0.5906	1.1	0.0433	15940	7880	0.169
62304-17mm	175217-2RS	17	0.6693	52	2.0472	17	0.6693	1.1	0.0433	15940	7880	0.18
6305-17mm	6305-17	17	0.6693	62	2.4409	17	0.6693	1.1	0.0433	22380	11490	0.33
6306-1-1/4"	6306-1-1/4	31.75	1.2500	72	2.8346	19	0.7480	1.1	0.0433	27000	15200	0.35
